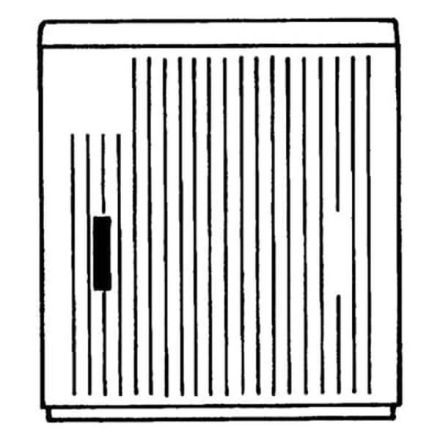

Cable distribution cabinet with profiled surface, 1310 mm high. They have a three-point lock with a swivel lever handle for 2 profile half cylinders. The cabinets are made of hot-pressed, glass fiber reinforced polyester, dyed through in RAL 7035 light gray. They are corrosion-resistant and UV-resistant and therefore suitable for outdoor use. The housings are suitable for ambient conditions from -35 ° C to + 70 ° C. The opened door can be easily dismantled by removing the hinge pins for optimal access to the cabinet. The door opening angle is greater than 180 °. There are pressed-in core holes in the rear wall for the reception of M8 press-in nuts for fastening busbars, mounting frames or mounting plates. The housings are supplied with an open base, base plates are available as accessories. There are fastening points in the side wall for mounting horizontal busbars. The housings are intended for mounting on bases in accordance with DIN 43629 with standard dimensions between the fastening points. EHP321DAG Cabinet AP size 1 1125x785x320 double locking, AG paint IP44, IK10
