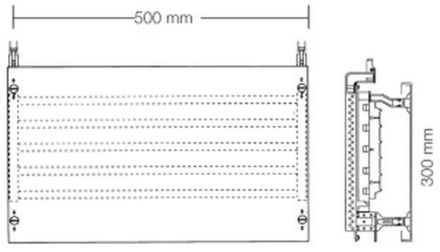

Interior fitting system, combination sets, mounted on EDF profile, for busbars, locking unit 2 RE = 300 mm, field width 2 = 500 mm, 48 space units, with 5-pole busbar system, busbar alignment: horizontal, with busbar holder ZB5, busbar center distance: 40 mm, with 5 copper bars, rated current In max. 360 A, plastic covers, 90 degree push-turn lock, RAL 7035, can be used from a cabinet depth of 200 mm, combination sets are plugged into the top or bottom of the distribution panel and attached to the cabinet on the other side. The EDF profile rails and field connectors are included in the scope of delivery.
