ABB Striebel & John KA4256Z measuring and transformer field complete H3/B3, 2CPX035075R9999

In stock

SKU: 551392

Price on request

€2,379.81

€0

Overview

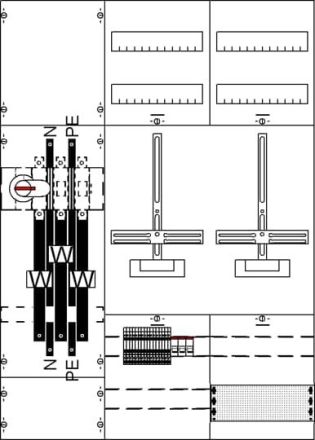

The transformer panels of the KA series with three-point fastening are designed for installation in the ComfortLine cabinet. The panels are pre-wired, which ensures quick and easy installation in the cabinet. The optional busbar connector can be used to cross-wire several panels as required. Applicable standards: DIN EN 61439-1,0660-600-1.

Property	Value
Height:	1050 mm
Width:	750 mm
Width in modular units:	36
Design:	1-storey
Connection space:	300 mm
Number of meter spaces:	1
Number of TSG spaces:	1
With wiring:	yes
With mounting plate:	no
Lower Connection compartment:	with top hat rails
Main switch rated current:	250 A
Color:	gray
RAL number:	7035
Protection class (IP):	IP2XC
