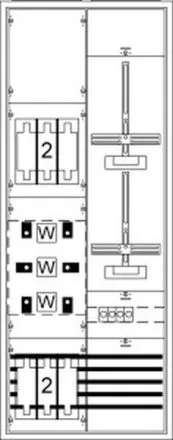

The measuring and converter cabinets are designed for surface and partially recessed installation. The distributors are used indoors in residential, commercial and industrial buildings, for example. The housings are supplied with a door and have top, bottom and side cable entry options. One advantage is the wide door opening angle of 120°. Furthermore, the doors can be easily removed if required. The housings meet protection class IP44 (IP31 according to DIN0603-1). Applicable standards: DIN0603-1, DIN 43870-1, color white RAL 9016 and powder-coated.
| Property | Value |
| Number of meter spaces: | 1 |
| Number of fields: | 2 |
| Height: | 1350 mm |
| Width: | 550 mm |
| Depth: | 215 mm |
| Protection class (IP): | IP31 |
| Design: | 2-storey |
| Lower connection compartment: | with 5-pole busbar |
| Number of TSG spaces: | 1 |
| Material: | Sheet steel |
| With mounting plate: | no |
| Mounting type: | Surface-mounted/partially recessed |
| Installation width: | 550 mm |
| Installation height: | 1350 mm |
| Installation depth: | 215 mm |
