Catalog

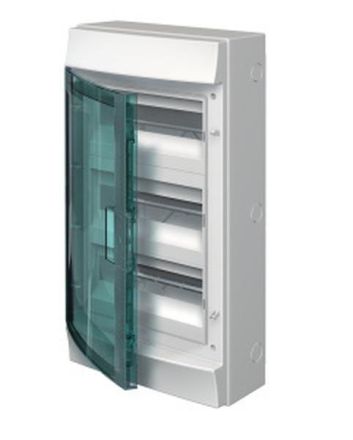

ABB Striebel & John M65W336TN3 circuit distributor, surface-mounted 3x12 space units, 1SLM006500S1216

In stock
SKU: 446030
€123.29
Into a basketIn the basketGo

Overview

The circuit distributors of the Mistral65 series are designed for surface mounting. The distributors are used indoors, for example in industrial applications. The housings are supplied with a door and have upper and lower cable entry options. The housings also have a robust housing (IK 09). They meet protection class IP65 and have a rated current of In 63A. The applicable standards are: DIN EN 60670-10606-1, DIN EN 60670-240606-24,

PropertyValue
Width in division units:12
Number of rows:3
Height:600 mm
Width:320 mm
Depth:155 mm
Protection class (IP):IP65
Color:grey
Mounting type:Surface-mounted
With lock:yes
Transparent Cover/door:yes
Housing material:plastic
RAL number:7035
DIN rail:yes
Mounting option:yes
Installation depth:84 mm
EMC version:no
With mounting plate:no
Type of cover:door
Cover design:with cutout
Inner depth:98 mm
Type of Closure:other

Characteristics

HABM65W336TN3 Mistral65 IP65 3x12
HAN1SLM006500S1216
GTIN8000126106978
Cultivation optionYes
Number of rows3
Type of coverDoor
Type of closureOther
Cover designWith cutout
Width320 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth84 mm
ColorGray
Height600 mm
Internal depth98 mm
With mounting plateNo
With lockYes
Mounting typeSurface-mounted
RAL number7035
IP protection)IP65
Depth155 mm
Transparent lid/doorYes
Housing materialPlastic
