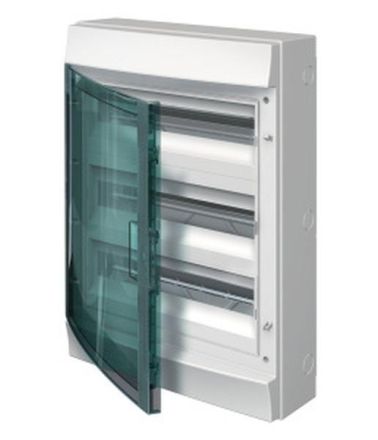

ABB Striebel & John M65W354TN3 circuit distributor, surface-mounted 3x18 space units, 1SLM006500S1218

In stock
SKU: 446089
€162.56
Into a basketIn the basketGo

Overview

The circuit distributors of the Mistral65 series are designed for surface mounting. The distributors are used indoors in industrial applications, for example. The housings are supplied with a door and have upper and lower cable entry options. The housings also have a robust housing (IK 09). They meet protection class IP65 and have a rated current of 63A. The applicable standards are: DIN EN 60670-1,0606-1, DIN EN 60670-24,0606-24,

PropertyValue
Width in division units:18
Number of rows:3
Height:600 mm
Width:430 mm
Depth:155 mm
Protection class (IP):IP65
Color:gray
Mounting type:Surface-mounted
With lock:yes
Transparent cover/door:yes
Housing material:Plastic
RAL number:7035
DIN rail:yes
Mounting option:yes
Installation depth:84 mm
EMC version:no
With mounting plate:no
Type of cover:Door
Cover design:with cutout
Inner depth:98 mm
Type of Closure:other

Characteristics

HABM65W354TN3 Mistral65 IP65 3x18
HAN1SLM006500S1218
GTIN8000126106992
Cultivation optionYes
Number of rows3
Type of coverDoor
Type of closureOther
Cover designWith cutout
Width430 mm
Width in pitch units18
DIN railYes
EMC versionNo
Installation depth84 mm
ColorGray
Height600 mm
Internal depth98 mm
With mounting plateNo
With lockYes
Mounting typeSurface-mounted
RAL number7035
IP protection)IP65
Depth155 mm
Transparent lid/doorYes
Housing materialPlastic
