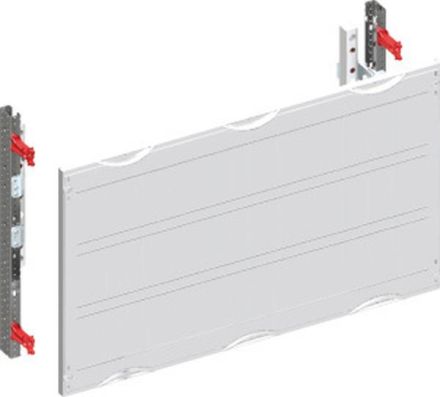

ABB Striebel & John MBD152 busbar system module 3RE / 1FB, for NH00 switch disconnectors, 2CPX042116R9999

In stock
SKU: 466754
€79.09
Into a basketIn the basketGo

Overview

Interior fitting module, CombiLine, kit unassembled, for busbar system 100 mm NH00 load-break switches, locking unit 3 RE = 450 mm, panel width 1 = 250 mm, 36 space units, usable width of 150 mm, unequipped for the installation of 3 NH fuse switch-disconnectors NH00, for 3-pole busbar system, busbar alignment: horizontal, with busbar holder ZX520, busbar center distance: 100 mm, for a maximum of 3 Cu bars, (busbars must be ordered separately), rated current In max. 850 A, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately

PropertyValue
Size:other
Rated current:850 A
Mounting type:busbar system
Number of poles:3
Switching neutral conductor:no
With cover:yes
Height:450 mm
Width:250 mm
Depth:131 mm

Characteristics

HABMBD152 NH-S.Load-break module
HAN2CPX042116R9999
GTIN4011617421160
SizeOther
Rated current850A
Width250 mm
Height450 mm
With coverYes
Switching neutral conductorNo
Mounting typeBusbar system
Number of poles3
Depth131 mm
