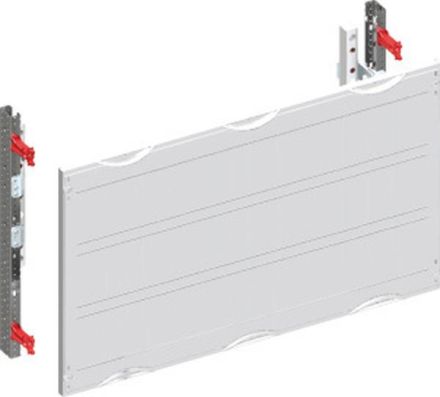

Interior fitting module, CombiLine, installed in the cabinet, for busbar system 100 mm NH00 switch disconnectors, locking unit 3 RE = 450 mm, panel width 1 = 250 mm, 36 space units, usable width of 150 mm, unequipped for the installation of 3 NH fuse switch disconnectors NH00, for 3-pole busbar system, busbar alignment: horizontal, with busbar holder ZX520, busbar center distance: 100 mm, for a maximum of 3 Cu bars, (busbars must be ordered separately), rated current In max. 850 A, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
