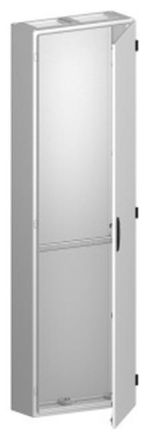

ABB Striebel & John TH212G TwinLine N 44 standing cabinet W550/ H1850/ D225 mm, 2CPX010950R9999

In stock
SKU: 464907
€446.12
Into a basketIn the basketGo

Overview

Floor-standing cabinet, TwinLine series, empty cabinet, installation type: surface-mounted, partially recessed, for indoor use, with door, protection class I (earthed), protection type IP44, applicable standards: DIN EN 61439-1,0660-600-1, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, single-leaf door, door made of sheet steel, with standard lock double bit 3 mm, door opening angle 180 degrees, door hinge right or left, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-stamped at the bottom via flange opening, dimensions in mm (H x W x D): 1850 x 550 x 225, locking unit 12 RE, height 8, field width 2, space units 288, prepared for installation of distribution panels and CombiLine modular system panels

PropertyValue
Height:1850 mm
Width:550 mm
Depth:225 mm
Installation depth:170 mm
Inner depth:222 mm
Protection type (IP):IP44
Protection class:I
Impact resistance:IK08
Housing material:Sheet steel/plastic
RAL number:7035
Mounting type:Floor installation
Suitable for outdoor use:no
Surface:powder-coated
Suitable for lightning protection:no
Mounting option:no
With mounting plate:no
Number of cable entries:104
Number of modules:288
Number of openings for flange plates:2
Number of rows:12
Type of cover:without
Type of door:Single
Cover design:with cutout
Width in division units:24
Functional integrity:without
Material thickness of housing:1 mm
Material thickness of door/cover:1.5 mm
With lock:yes
Transparent cover/door:no
Color:gray

Characteristics

HABTH212G SKI-IP44
HAN2CPX010950R9999
GTIN4011617109501
Cultivation optionNo
Number of cable entries104
Number of modules288
Number of rows12
Number of openings for flange plates2
Type of coverWithout
Type of doorSingles
Cover designWith cutout
Width550 mm
Width in pitch units24
Installation depth170 mm
ColorGray
Functional preservationWithout
Suitable for outdoor useNo
Suitable for lightning protectionNo
Height1850 mm
Internal depth222 mm
Housing material thickness1 mm
Material thickness door/lid1.5 mm
With mounting plateNo
With lockYes
Mounting typeFloor installation
SurfacePowder coated
RAL number7035
Impact resistanceIK08
IP protection)IP44
Protection classI
Depth225 mm
Transparent lid/doorNo
Housing materialSheet steel/plastic
