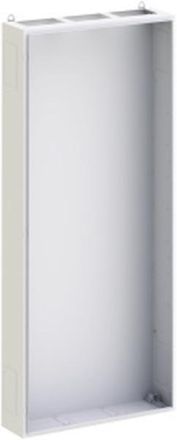

Floor-standing cabinet, TwinLine series, empty cabinet, mounting type: surface-mounted, partially recessed, for indoor use, without door, protection class II (protectively insulated), protection type IP30, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, DIN EN 61439-3,0660-600-3, IK code 08, powder-coated, in RAL 7035, housing made of sheet steel, without door, rear panel made of sheet steel, cable entry cut out at the top via flange opening, pre-punched at the bottom via flange opening, pre-punched at the side via flange opening, dimensions in mm (H x W x D): 1850 x 300 x 350, locking unit 12 RE, height 8, field width 1, space units 144, prepared for expansion with meter and distribution panels, Combi sets, CombiLine modules on EDF/WR assembly frame
| Property | Value |
| Height: | 1850 mm |
| Width: | 300 mm |
| Depth: | 350 mm |
| Installation depth: | 299 mm |
| Inner depth: | 347 mm |
| Protection type (IP): | IP30 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 52 |
| Number of modules: | 144 |
| Number of openings for flange plates: | 1 |
| Number of rows: | 12 |
| Type of cover: | without |
| Type of door: | without |
| Cover design: | with cutout |
| Width in division units: | 12 |
| Functional integrity: | without |
| Material thickness of housing: | 1 mm |
| Material thickness of door/cover: | 1 mm |
| With lock: | no |
| Transparent cover/door: | no |
| Color: | gray |
