Catalog

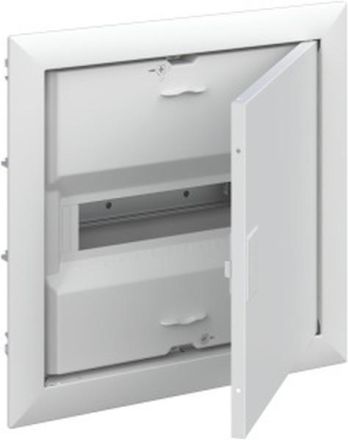

ABB Striebel & John UK612N2 circuit distributor, flush-mounted 12 space units, with door and cover plate, 2CPX031369R9999

In stock
SKU: 468667
€40.81
Into a basketIn the basketGo

Overview

The circuit distributors in the UK600 series are designed for flush-mounted installation. They impress with many new and unique technical features. For example, a connection space that is up to 200% larger enables the devices to be installed easily and efficiently. The removable device carrier can be positioned in the distributor as required, thus also guaranteeing easy installation. Clever details such as the cable entry slide with integrated terminal holder and the variable use in solid or drywall walls underline the distributors' high flexibility. An optionally available interchangeable picture frame turns the UK600 into an eye-catcher in no time at all and integrates into any environment. The distributors can be used in flush-mounted and hollow wall installation and have a label. Applicable standards: DIN 43871, DIN EN 60670-24,0606-24

PropertyValue
Width in division units:12
Number of rows:1
Height:372 mm
Width:384 mm
Depth:97 mm
Protection class (IP):IP30
Color:white
Mounting type:Flush-mounted
With lock:yes
Transparent cover/door:no
Housing material:Plastic
RAL number:9016
DIN rail:yes
Mounting option:yes
Installation depth:75 mm
EMC version:no
With mounting plate:no
Type of cover:door
Cover design:closed
Type of closure:push button

Characteristics

HABUK612N2 with door 12PLE IP30
HAN2CPX031369R9999
GTIN4011617313694
Cultivation optionYes
Number of rows1
Type of coverDoor
Type of closurePush button
Cover designClosed
Width384 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth75 mm
ColorWhite
Height372 mm
With mounting plateNo
With lockYes
Mounting typeFlush-mounted
RAL number9016
IP protection)IP30
Depth97 mm
Transparent lid/doorNo
Housing materialPlastic
ABB Striebel & John UK612N2 circuit distributor, flush-mounted 12 space units, with door and cover plate, 2CPX031369R9999
ABB Striebel & John UK612N2 circuit distributor, flush-mounted 12 space units, with door and cover plate, 2CPX031369R9999
€40.81
Into a basketIn the basketGo
