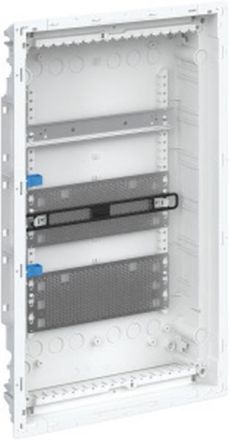

ABB Striebel & John UK636MB media distributor, flush-mounted 3-row, without door and frame, 2CPX031395R9999

In stock
SKU: 468684
€61.57
Into a basketIn the basketGo

Overview

The media distributors in the UK600 series are designed for flush-mounted installation. They impress with many new and unique technical features. For example, a connection space that is up to 200% larger enables the devices to be installed easily and efficiently. The generous space means that all conceivable devices, such as routers or other media modules, can find their safe place. Modular perforated sheet mounting plates enable the devices to be installed easily and an integrated rotating 3-way socket ensures the power supply. An optionally available interchangeable picture frame turns the UK600 into an eye-catcher in no time at all and integrates into any environment. The distributors can be used in flush-mounted and hollow-wall installation and have a label. Applicable standards: DIN 43871, DIN EN 60670-24,0606-24

PropertyValue
Width in division units:12
Number of rows:3
Height:597 mm
Width:362 mm
Depth:97 mm
Protection class (IP):IP30
Color:white
Mounting type:Flush-mounted
With lock:no
Transparent cover/door:no
Housing material:plastic
RAL number:9016
DIN rail:yes
Mounting option:yes
Installation depth:81 mm
EMC version:no
With mounting plate:yes
Type of cover:optional
Cover design:closed
Type of closure:other

Characteristics

HABUK636MB DIN rail 3R base
HAN2CPX031395R9999
GTIN4011617313953
Cultivation optionYes
Number of rows3
Type of coverOptional
Type of closureOther
Cover designClosed
Width362 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth81 mm
ColorWhite
Height597 mm
With mounting plateYes
With lockNo
Mounting typeFlush-mounted
RAL number9016
IP protection)IP30
Depth97 mm
Transparent lid/doorNo
Housing materialPlastic
