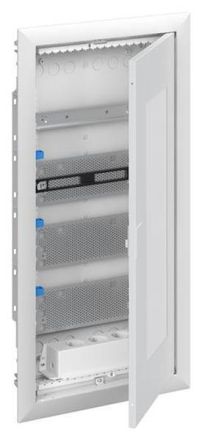

Multimedia distributor, UK600 series, installation type: flush-mounted, hollow wall with accessories, partially recessed, for indoor use, with frame and door, protection class II (protectively insulated), protection type IP30, applicable standards: DIN 43871, DIN EN 60670-24,0606-24, IK code 07, rated operating voltage Ue 400V AC 50/60 Hz, rated current In 63 A, glow wire resistance 850°C, powder-coated, in RAL 9016, housing made of thermoplastic, with frame and ventilated sheet steel door for WLAN, door made of sheet steel, with Tip In lock, door opening angle 120 degrees, door hinge right or left, cable entry pre-punched at the top via cable entry slide, pre-punched at the bottom via cable entry slide, side via pre-punched, rear wall pre-punched, Dimensions in mm (H x W x D): 747 x 384 x 97, frame dimensions in mm (H x W x D): 747 x 384 x 9, 4-row, integrated cable clamp rail, equipped with patch panel, mounting plate for multimedia applications and 3-way rotatable socket
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 4 |
| Height: | 747 mm |
| Width: | 384 mm |
| Depth: | 97 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Flush-mounted |
| With lock: | yes |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 81 mm |
| EMC version: | no |
| With mounting plate: | yes |
| Type of cover: | door |
| Cover design: | closed |
| Type of closure: | push button |
