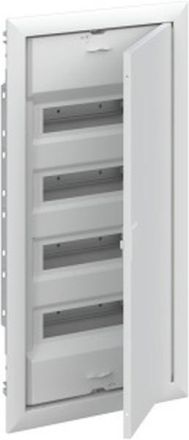

ABB Striebel & John UK648N3 circuit distributor, flush-mounted 48 space units, with door and cover plate, 2CPX031372R9999

In stock
SKU: 468670
€63.58
Into a basketIn the basketGo

Overview

The circuit distributors of the UK600 series are designed for flush-mounted installation. They impress with many new and unique technical features. For example, a connection space that is up to 200% larger enables the devices to be installed easily and efficiently. The removable device carrier can be positioned in the distributor as required, thus also guaranteeing easy installation. Clever details such as the cable entry slide with integrated terminal holder and the variable use in solid or drywall walls underline the distributors' high flexibility. An optionally available interchangeable picture frame turns the UK600 into an eye-catcher in no time at all and integrates into any environment. The distributors can be used in flush-mounted and hollow wall installation and have a label. Applicable standards: DIN 43871, DIN EN 60670-24,0606-24

PropertyValue
Height:747 mm
Width:384 mm
Depth:97 mm
Width in HP:12
Rows:4
Protection class (IP):IP30
Color:white
Mounting type:Flush-mounted
With lock:yes
Transparent Cover/door:no
Housing material:plastic
RAL number:9016
DIN rail:yes
Mounting option:yes
Installation depth:97 mm
EMC version:no
With mounting plate:no
Type of cover:door
Cover version:closed
Inner depth:75 mm
Type of Closure:Push button
Installation height:747 mm
Installation width:384 mm
Earth terminal block:yes
Neutral conductor terminal block:yes
Signal-permeable door:no

Characteristics

HABUK648N3 with door 48PLE IP30
HAN2CPX031372R9999
GTIN4011617313724
Cultivation optionYes
Type of coverDoor
Type of closurePush button
Cover designClosed
Width384 mm
DIN railYes
EMC versionNo
Installation width384 mm
Installation height747 mm
Installation depth97 mm
ColorWhite
Height747 mm
Internal depth75 mm
With mounting plateNo
With lockYes
Mounting typeFlush-mounted
RAL number9016
IP protection)IP30
Depth97 mm
Transparent lid/doorNo
Housing materialPlastic
