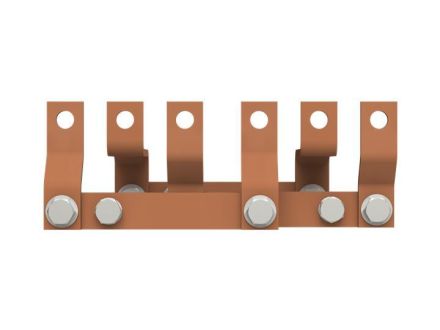

ABB Striebel & John ZH214 busbar system for module MBT136, 2CPX060443R9999

In stock
SKU: 464936
€94.07
Into a basketIn the basketGo

Overview

Busbars as busbar system, E-Cu according to DIN 43673-1, dimensions: 20 x 5 mm, with a length of 170 mm, dimensions: 20 x 5 mm, screw connection M8, for a rated current of 320 A, 3-pole, packaging unit 1 piece

PropertyValue
Rated current:320 A
Width:170 mm
Height:110 mm
Depth:60 mm
Number of poles:3
Rail spacing:33 mm
Rail height:20 mm
Rail thickness:5 mm
Short-circuit strength (Icw):25 kA
Material:Copper

Characteristics

HABZH214
HAN2CPX060443R9999
GTIN4011617604433
Rated current320A
Width170 mm
Height110 mm
Short circuit strength (Icw)25kA
Number of poles3
Depth60 mm
MaterialCopper
