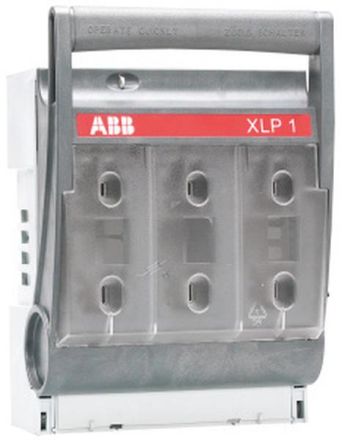

ABB Striebel & John ZH431 NH switch disconnector NH1 250A, 2CPX062958R9999

In stock
SKU: 448542
€382.02
Into a basketIn the basketGo

Overview

Fuse switch disconnector NH1, rated current (In) max. 250 A, without isolating covers, with screw connection M10, for installation with EDF and WR mounting frame on isolating crossbeam.

PropertyValue
Rated continuous current Iu:250 A
Protection class (IP), front:IP30
Number of poles:3
Design as main switch:yes
Design of the actuating element:cover handle
Type of connection main circuit:screw connection
Suitable for front mounting:yes
Suitable for floor mounting:no
With fuse monitoring:no
Version as EMERGENCY STOP device:no
Conditional rated short-circuit current Iq:50 kA
Version as safety switch:no
Max. Rated operating voltage Ue at AC:400 V
Suitable for busbar construction:no
Suitable for fuse links:NH1
Position of the actuating element:front
Integrated motor drive:no
Rated short-time withstand current Icw:50 kA
Optional motor drive:no
Cable entry:other
Equipped with connectors:no

Characteristics

HABZH431 NH1 250A
HAN2CPX062958R9999
GTIN4011617629580
Connection type main circuitScrew connection
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq50kA
Rated continuous current Iu250A
Rated short-time withstand current Icw50kA
Suitable for floor mountingNo
Suitable for front mountingYes
Suitable for busbar constructionNo
Suitable for fuse insertsNH1
Cable entryOther
Max. rated operating voltage Ue at AC400V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontIP30
