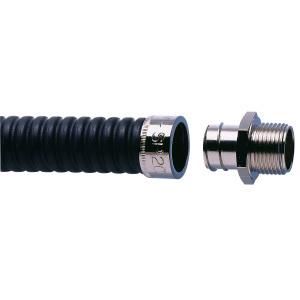

ABB Thomas & Betts SP50/M50/A screw connection, 7TCA296020R0298

In stock

SKU: 458602

Price on request

€52.95

€0

Overview

SP50/M50/A Type SP, N dimension: 50, straight screw, fixed external thread, nickel-plated brass, thread: M50

Property	Value
Nominal diameter:	50 mm
Largest outside diameter of the hose:	50 mm
Smallest inside diameter of the hose:	45 mm
Thread connection size:	M50 x 1.5
Perm. in combination with protective hose DIN EN 61386-23:	no
Total length:	45 mm
Total height:	66.5 mm
Thread length:	15 mm
Rotatable thread:	no
Nominal size in inches:	1 1/2 inch
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	3500 °C
Thread type:	other
Connection type of screw connection to the housing:	thread
With earth connection:	no
