ABB Thomas & Betts SP75/75/C screw connection, 7TCA296020R0334

In stock

SKU: 459291

Price on request

€125.34

€0

Overview

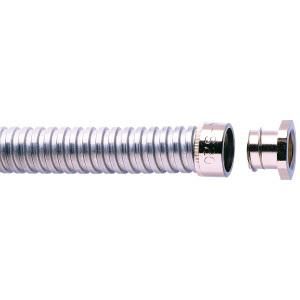

Adaptaflex screw connection type C entry socket without thread IP54 75mm nickel-plated brass

Property	Value
Nominal diameter:	75 mm
Largest outside diameter of the hose:	75 mm
Smallest inside diameter of the hose:	66.5 mm
Thread connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	yes
Total length:	36 mm
Total height:	84 mm
Rotatable thread:	no
Design:	straight
Construction:	without thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface:	nickel-plated
Thread type:	other
Connection type of screw connection to the housing:	thread
With earth connection:	no
