ABL Sursum 1632490 2-way aluminum die-cast housing

In stock
SKU: 517264
€140.78
Into a basketIn the basketGo

Overview

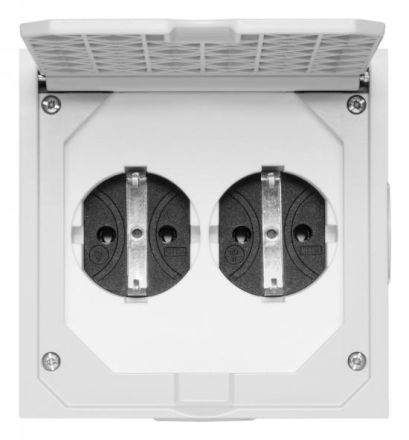

The BOWAcompact consists of a built-in box with two M20 and a cover with a hinged lid made of die-cast aluminum. Unevenness in the floor can be easily compensated for with the help of four adjusting screws. The built-in box can be connected in series on two sides. The socket with increased contact protection is suitable as a floor socket in dry rooms; when installed in a wall, it is drip-proof in accordance with IP41. Several BOWA can be connected in series perfectly with the help of connecting clips.

PropertyValue
Version:SCHUKO
Number of poles:3
Nominal voltage:250 V
Nominal current:16 A
Plug direction:straight
Connection technology:screw terminal
Color:gray
For 'difficult conditions' (according to VDE) :no
Material:metal
Material quality:aluminum
Protection class (IP):IP41
Halogen-free:yes
RAL number:7035
Flange size:other
With hinged lid:yes
Protection class (NEMA):other

Characteristics

HAB1632490 2-way
ManufacturerABL Sursum
HAN1632490
GTIN4011721024004
Connection technologyScrew terminal
VersionSCHUKO
ColorGray
Halogen freeYes
With hinged lidYes
Nominal voltage250V
Rated current16A
Number of poles3
RAL number7035
Plug directionStraight
MaterialMetal
Material qualityAluminum
