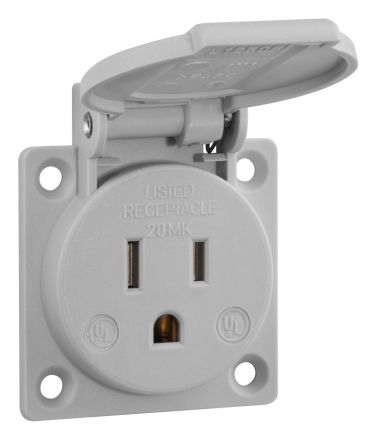

ABL Sursum UL12506 125V grey built-in socket

In stock

SKU: 517255

Price on request

€18.07

€0

Overview

The built-in socket for the USA according to UL 498/NEMA 5-15 R and for Canada according to CSA C22.2 No.: 42 is made of highly impact-resistant thermoplastic. The built-in socket 1-pole + N + earth is equipped with a screw connection, a four-way flange fastening and a hinged cover. The built-in socket is heat, cold and UV-resistant. The cable connection is from the rear and the opening angle is approx.: 106°.

Property	Value
Version:	American National Standard
RAL number (similar) :	7035
Number of units:	1
Color:	gray
Suitable for protection class (IP) :	IP44
Rated voltage:	125 V
Rated current:	15 A
Lockable:	no
With increased contact protection:	no
With Hinged lid:	yes
Mounting type:	other
Text field/labeling area:	no
Frequency:	60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Print/marking:	without print
Connection type:	Screw terminal
With fine fuse:	no
Fastening type:	Fastening with screw
Material:	Plastic
Material quality:	Polyvinyl chloride (PVC)
Surface:	other
Surface finish:	matt
For 'difficult conditions' (according to VDE):	no
Number of switchable sockets:	1
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK08
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (flat):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	22 mm

Characteristics

HABUL12506 125V grey

Minimal order100 pieces

Manufacturer

HANUL12506

GTIN4011721049328

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Printing/markingWithout imprint

VersionAmerican National Standard

Surface finishFrosted

Ejection mechanismNo

Mounting typeFastening with screw

Color

Residual current protectionNo

Frequency60Hz

Halogen freeYes

Insulated installationYes

Min. depth of the device box22 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeOther

Nominal voltage125V

Rated current15A

SurfaceOther

Impact resistanceIK08

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityPolyvinyl chloride (PVC)

Overvoltage protectionNo
