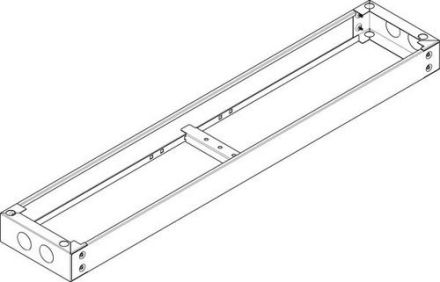

Base 90 mm. External dimensions W x H x D (mm) 1340 x 90 x 260. Width 5. Base. Protection class II (NF..P series), protection class I (NF..E series). Protection type: IP55 (only in conjunction with cable entry plates). For devices up to 800 A. Floor mounting with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Height: 1890 mm without base. Depth: 280 mm. Color: RAL 9016 (traffic white). Space units: 144 to 720. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connections and M50 screw connections. Cable entry plates of your choice with metric pre-punches. Membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door can be mounted on the right or left with an opening angle of 180°, 3mm double-bit lock with 3-point bar lock. Prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including scaffold bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2: Scaffold brackets are included as follows: Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
