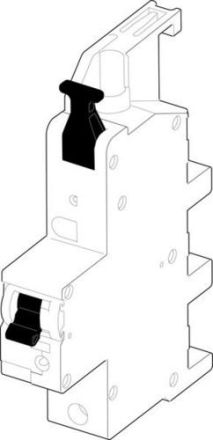

ABN 1-pole 35A for busbar mounting main circuit breaker (XKS135L1-5)

ABN 1-pole 35A for busbar mounting main circuit breaker (XKS135L1-5)

In stock

SKU: 777899

Price on request

€88.62

€0

Into a basketIn the basketGo

Overview

SHU switch/1-pole/35A, collective mounting characteristic E / ABN, phase L1

Property	Value
Number of poles:	1
Rated current:	35 A
Rated voltage:	230 V
Tripping characteristic:	E
Protection class (IP):	IP20
Mounting type:	Busbar
Rated insulation voltage Ui:	690 V
Frequency:	50 Hz
Pollution degree:	3
Rated breaking capacity:	25 kA
Rated impulse withstand voltage:	6 kV
Overvoltage category:	4
Switching neutral conductor:	no

Characteristics

Rated breaking capacity25 kA

HAB1-pole 35A for busbar mounting

Manufacturer

HANXKS135L1-5

GTIN4015153499423

Trigger characteristicsE

Rated insulation voltage Ui690V

Rated voltage230V

Rated current35A

Frequency50Hz

Switching neutral conductorNo

Mounting typeBusbar

Number of poles1

IP protection)IP20

Degree of contamination3

Overvoltage category4

ABN 1-pole 35A for busbar mounting main circuit breaker (XKS135L1-5)

ABN 1-pole 35A for busbar mounting main circuit breaker (XKS135L1-5)

Price on request

€88.62

€0

Into a basketIn the basketGo
