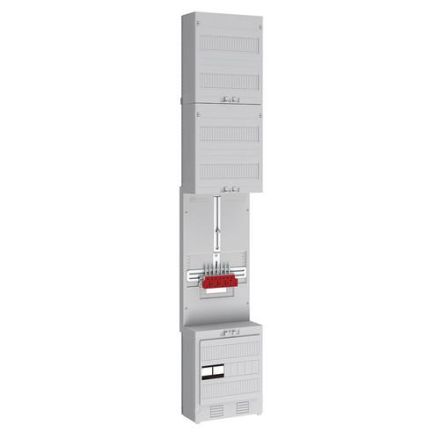

ABN ABNPZ109Z1851 1Z 100A 1V 35qmm SaS LUX ZSK 5-pin meter box

In stock
SKU: 934597
€740.89
Into a basketIn the basketGo

Overview

Meter station consisting of: 1x 3-point fastening with distribution station with 35 mm², meter plug-in terminal 100 A and 5-pole main line branch terminal, no meter reserve station, NAR with busbar system 5-pole, country-specific version for Luxembourg

PropertyValue
Height:1350 mm
Width:250 mm
Width in modular units:12
Design:1-storey
Connection compartment:300 mm
Number of meter spaces:1
Number of distribution rows:4
With wiring:yes
With mounting plate:no
Lower connection compartment:with Busbar 5-pole
Cover design:closed with pre-punching
Main switch rated current:100 A
Color:gray
RAL number:9002
Protection class (IP):IP20

Characteristics

HAB1Z 100A 1V 35qmm SaS LUX ZSK 5pol
ManufacturerABN
HANABNPZ109Z1851
GTIN4015153838154
Connection room300 mm
Number of distribution rows4
Number of meter slots1
Version1-storey
Cover designClosed with pre-stamping
Width250 mm
Width in pitch units12
ColorGray
Main switch rated current100A
Height1350 mm
With mounting plateNo
With wiringYes
RAL number9002
IP protection)IP20
Lower connection compartmentWith busbar 5-pole
