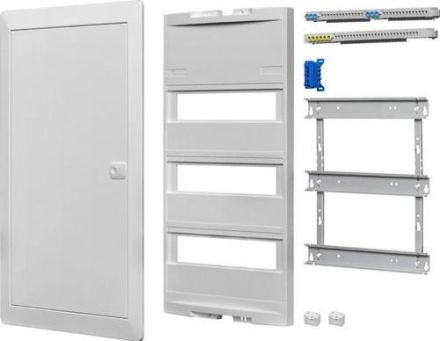

Installation sets with plug-in terminals,PE 6 x2.5-16 + 21 x1.5-4mm²,N+N 2 x(3 x2.5-16 + 14 x1.4-4mm²),additional N-FI terminal 3 x16,2 x10mm²,TE each 18mm 36,rows 3,Installation sets,Protective insulated II,Protection class: IP30,For devices up to 63A,Easy door stop change without dismantling the frame,Flat door lock with snap technology,Easy to replace with a lock,Suitable for built-in devices up to 70mm deep,Color: RAL 9016 (traffic white),Built according to DIN0603-1,DIN 43871,Wall box:,Wall boxMade of plastic,Fastening hooks (HW),Nail tabs (UP),Plaster protection plate,Installation set:,Support frame with device support rail, device cover, cover frame with solid door and plaster compensation, N/PE plug-in terminals, N-FI extension terminal (in 2-, 3- and 4-row distributors), circuit labels and sheet with pictograms,
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 3 |
| Protection class (IP): | IP20 |
| Color: | white |
| Mounting type: | Hollow wall |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | no |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | without |
| Cover design: | with cutout |
| Type of closure: | other |
