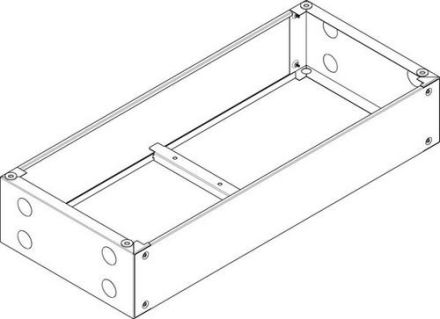

Base 200mm, external dimensions WxHxD (mm) 1090 x90 x480, width 4, base, protection class II (series NS, PB), protection class I (series NS, EB), protection type: IP55 (only in conjunction with cable entry plates and side panels), for devices up to 1600 A, floor mounting with external fastening, widths: 340, 590, 840, 1090, 1340 mm, height: 1890mm without base, depth: 500 mm, colour: RAL 9016 (traffic white), space units: 144 to 720, material: 1.5mm (doors 2mm) sheet steel, powder-coated, open on both sides, cable entry plates of your choice with metric pre-punched holes, membrane flange or foam rubber plate, can be combined horizontally and vertically, Door Surface-mounted, right or left Can be hinged with an opening angle of 180°, 3 mm double-bit lock with 3-point bar lock, Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates including, Support frame bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, Support frame brackets are included as follows:, Field width 1 and 2 (340mm and 590mm)-1 set, Field width 3 and 4 (840mm and 1090mm)-2 sets, Field width 5 (1340mm)-3 sets,
| Property | Value |
| Height: | 200 mm |
| Width: | 1340 mm |
| Depth: | 500 mm |
| Suitable for housing width: | 1340 mm |
| Suitable for housing depth: | 500 mm |
| Suitable for cable routing: | yes |
| Color: | gray |
| Suitable for ventilation: | no |
| Version: | Base complete |
| Material: | Steel |
| Suitable for outdoor installation: | no |
| Max. load capacity: | 450 kg |
