ABN EURO 3-f.45° 2m cable H05VV-F 3G1 5mm socket SCHUKO (XSD3L)

ABN EURO 3-f.45° 2m cable H05VV-F 3G1 5mm socket SCHUKO (XSD3L)

In stock

SKU: 779736

Price on request

€42.14

€0

Into a basketIn the basketGo

Overview

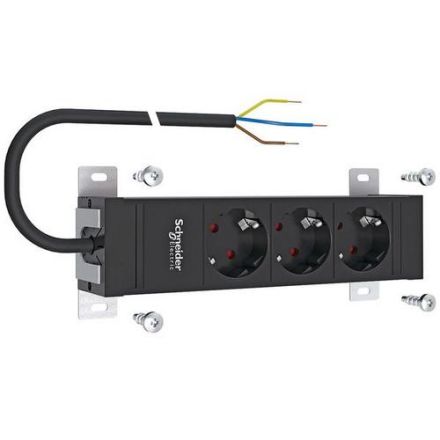

Accessories consisting of: 1x 3-way socket with ready-to-connect cable 2 m H05VV-F 3G1.5 mm and mounting bracket

Property	Value
Number of SCHUKO sockets:	3
Length of supply cable:	2 m
Rated current:	16 A
Material quality:	Thermoplastic
Color:	black
Material:	Plastic
Protection class (IP):	IP20
With cover:	no
With on/off switch:	no
Housing shape:	rectangular
RAL number (similar):	8022
FI switch:	no
Overvoltage protection:	no
Halogen-free:	no
Mains interference filter:	no
Surface:	untreated
Surface finish:	matt
Transparent:	no
Twisted central insert:	yes
Angle twisted Central insert:	35°
Wire cross-section:	1.5 mm²
NEMA code:	without

Characteristics

FI switchNo

Housing shapeRectangular

Core cross-section1.5 mm²

Angle twisted central insert35°

Number of SCHUKO sockets3

NEMA codeWithout

Length of the supply line2 m

HABEURO 3-f.45° 2m cable H05VV-F 3G1 5mm

Manufacturer

HANXSD3L

GTIN4015153781634

Surface finishFrosted

Color

Halogen freeNo

With lidNo

With on/off switchNo

Rated current16A

Mains interference filterNo

SurfaceUntreated

RAL number (similar)8022

IP protection)IP20

TransparentNo

Twisted central insertYes

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

ABN EURO 3-f.45° 2m cable H05VV-F 3G1 5mm socket SCHUKO (XSD3L)
