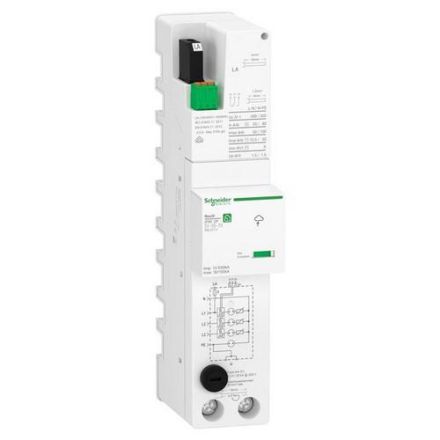

ABN R9L22712 ZP T1 T2 T3 12.5kA TT/TNS 3PN voltage arrester combined arrester

In stock

SKU: 934112

Price on request

€326.78

€0

Overview

ZP combination arrester for NAR on 40mm SaS in snap-on technology type T1+T2+T3, with external lightning protection 12.5 kA, TT/TNS system 3PN, leakage current free, voltage tap with integrated fuse and potential-free remote monitoring contact

Property	Value
Maximum continuous voltage AC:	300 V
Lightning impulse current (10/350 µs):	12.5 kA
Number of poles:	4
Nominal voltage AC:	240 V
Size:	3 TE
Remote signaling:	yes
Signaling on the device:	optical
Network type TN-CS:	yes
Network type DC:	no
Network type TN:	no
Energetically coordinated protective effect to the end device:	no
Mounting type:	Busbar
Network type TT:	yes
Integrated back-up fuse:	yes
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Max. Conductor cross-section flexible (fine-stranded):	25 mm²
Network type other:	no
Protection level LN:	1.5 kV
Network type TN-C:	yes
Network type IT:	no
Network type TN-S:	yes
Protection level L-PE:	1.5 kV
Protection class (IP):	IP20
