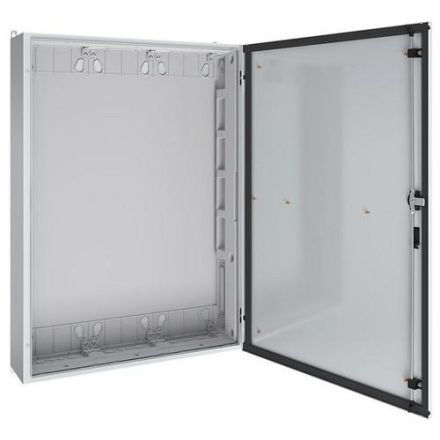

Wall housing, 225mm deep, protectively insulated Y, external dimensions WxHxD (mm) 800 x1100 x225, width 3, height 7, PLE 252, wall housing, 225mm deep, protection class II (SP series), protection class I (SE series), protection type: IP54, for devices up to 400A, surface mounting with external fastening, widths: 300, 550, 800, 1050, 1300 mm, heights: 500, 650, 800, 950, 1100, 1250, 1400 mm, depth: 225 mm, colour: RAL 9016 (traffic white), space units: 36 to 540, material: 1.5 mm (door 2 mm) sheet steel, powder-coated, pre-punched on both sides for housing connection M6,Cable entries 2K membrane flange bottom and top 35 x each per field,Can be combined horizontally and vertically,DoorSurface-mounted,Right or leftHinged,with opening angle 270°,3 mm double-bit lock with 3-point rod lock,Prepared for the installation of standardized module kitsOn,NT support profiles or for continuous mounting plates,DIN EN 61439-1 (VDE0660 Part 600-1),
| Property | Value |
| Height: | 1102 mm |
| Width: | 800 mm |
| Depth: | 225 mm |
| Installation depth: | 190 mm |
| Inner depth: | 170 mm |
| Protection type (IP): | IP54 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 240 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 6 |
| Number of rows: | 3 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in division units: | 36 |
| Functional integrity: | without |
| Material thickness housing: | 1.5 mm |
| Material thickness door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 400 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
