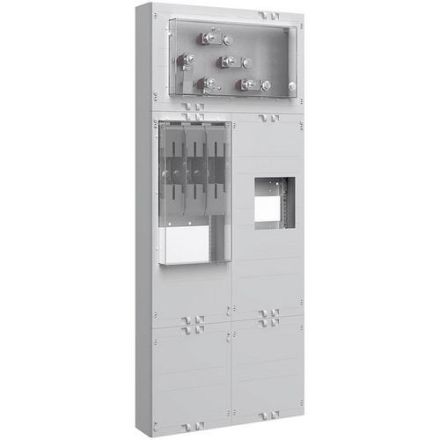

ABN VT28WN3931 250A NH2/400A LSS M 5-pin transformer field

In stock
SKU: 934151
€3,001.11
Into a basketIn the basketGo

Overview

consisting of: Mains-side connection compartment (NAR, top), with mains-side separation point, H x W (mm): 750 x 250: NH2 fuse element, 3x1-pole, on mounting crossbar, with main current wiring 150mm² and N+PE connection lug (voltage tap N+PE), transformer compartment, H x W (mm): 450 x 500: With insulators, primary wiring 150mm² on Cu connection lugs and sealable cover with transparent cover, for on-site standard transformer lug 170mm long in accordance with Form A according to DIN0603-2-2, hole spacing 130mm, system-side connection compartment (AAR), H x W (mm): 750 x 250: With PE connection lug, prepared for 400A circuit breaker, 4-pole, with motor drive, empty space for overvoltage protection (incl. N+PE connection terminal), note installation position

PropertyValue
Height:1202.5 mm
Width:500 mm
Depth:166.11 mm
Number of DIN rails:1
Number of pitch units per DIN rail:12
With N-PE terminals:no
With cover:yes
Type of cover:closed
With mounting plate:no

Characteristics

Number of pitch units per DIN rail12
Number of DIN rails1
HAB250A NH2/400A LSS M 5-pin.
ManufacturerABN
HANVT28WN3931
GTIN4015153772618
Type of coverClosed
Width500 mm
Height1202.5 mm
With coverYes
With mounting plateNo
With N-PE terminalsNo
Depth166.11 mm
ABN VT28WN3931 250A NH2/400A LSS M 5-pin transformer field
ABN VT28WN3931 250A NH2/400A LSS M 5-pin transformer field
€3,001.11
