ABN WK109Y3130 250A NAR 5-p.Zu=NH2 lower part AB=NH2 transformer field

ABN WK109Y3130 250A NAR 5-p.Zu=NH2 lower part AB=NH2 transformer field

In stock

SKU: 934217

Price on request

€1,499.86

€0

Into a basketIn the basketGo

Overview

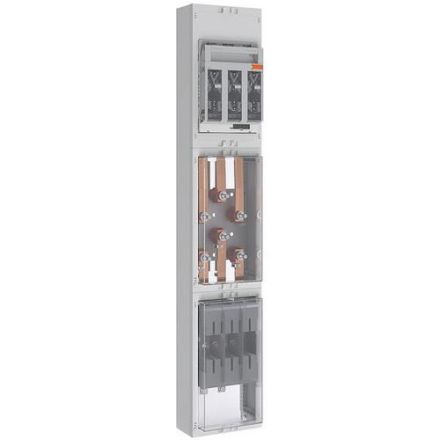

Transformer field for 250A continuous current consisting of: 1xNAR with NH2 base with transparent cover and N/PE connection, 1x converter module 450mm for converter lugs type A with 30mm width, 1xAAR with NH2 isolator and N/PE connection

Property	Value
Height:	1350 mm
Width:	250 mm
Depth:	165 mm
Number of division units per DIN rail:	12
With N-PE terminals:	yes
With cover:	yes
Type of cover:	Viewing window
With mounting plate:	no

Characteristics

Number of pitch units per DIN rail12

HAB250A NAR 5-p.Zu=NH2 lower part AB=NH2

Manufacturer

HANWK109Y3130

GTIN4015153797215

Type of coverViewing window

Width250 mm

Height1350 mm

With coverYes

With mounting plateNo

With N-PE terminalsYes

Depth165 mm

ABN WK109Y3130 250A NAR 5-p.Zu=NH2 lower part AB=NH2 transformer field

ABN WK109Y3130 250A NAR 5-p.Zu=NH2 lower part AB=NH2 transformer field

Price on request

€1,499.86

€0

Into a basketIn the basketGo
