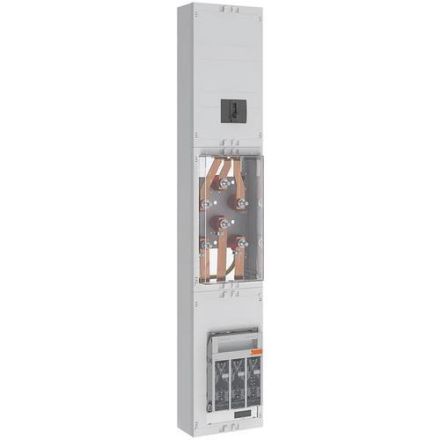

ABN WK109Y5520 200A NAR 40mm SAS 5-p.Zu=NH1 AB=LSS 250A transformer field

ABN WK109Y5520 200A NAR 40mm SAS 5-p.Zu=NH1 AB=LSS 250A transformer field

In stock

SKU: 934223

Price on request

€1,826.94

€0

Into a basketIn the basketGo

Overview

Transformer field for 200A continuous current consisting of: 1xNAR with 40mm busbar 2x12x5mm equipped with NH1 isolator, 1xconverter module 450mm for transformer lugs type A with 30mm width, 1xAAR circuit breaker NSX250F with TM250D 175-250A 36kA/415VAC3 3-pole and terminal for N and PE

Property	Value
Height:	1350 mm
Width:	250 mm
Depth:	190 mm
Number of DIN rails:	2
Number of division units per DIN rail:	12
With N-PE terminals:	yes
With cover:	yes
Type of cover:	Viewing window
With mounting plate:	no

Characteristics

Number of pitch units per DIN rail12

Number of DIN rails2

HAB200A NAR 40mm SAS 5-p.Zu=NH1 AB=LSS 250A

Manufacturer

HANWK109Y5520

GTIN4015153797307

Type of coverViewing window

Width250 mm

Height1350 mm

With coverYes

With mounting plateNo

With N-PE terminalsYes

Depth190 mm
