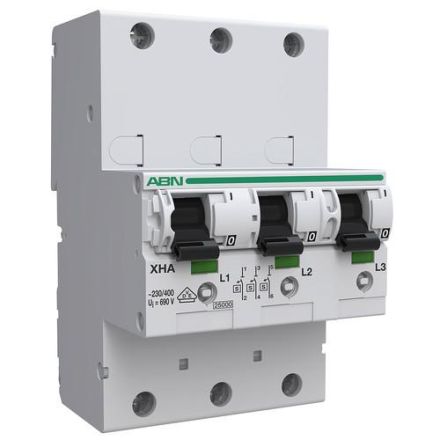

ABN XHA3165 Char.E/ SHU switch ( XHA316-5 )

ABN XHA3165 Char.E/ SHU switch ( XHA316-5 )

In stock

SKU: 780029

Price on request

€324.89

€0

Into a basketIn the basketGo

Overview

SHU switch/3-pole/16A, DIN rail mountingCharacteristic E /ABN

Property	Value
Number of poles:	3
Rated current:	16 A
Rated voltage:	400 V
Tripping characteristic:	E
Protection class (IP):	IP20
Mounting type:	DIN rail
Rated insulation voltage Ui:	690 V
Frequency:	50 Hz
Pollution degree:	3
Rated breaking capacity:	25 kA
Rated impulse withstand voltage:	6 kV
Overvoltage category:	4
Switching neutral conductor:	no

Characteristics

Rated breaking capacity25 kA

HABXHA3165 Char.E/ABN

Manufacturer

HANXHA316-5

GTIN4015153098602

Trigger characteristicsE

Rated insulation voltage Ui690V

Rated voltage400V

Rated current16A

Frequency50Hz

Switching neutral conductorNo

Mounting typeDIN rail

Number of poles3

IP protection)IP20

Degree of contamination3

Overvoltage category4
