ABN ZM209Y5672 f.ZWP RWE NAR 40mm SAS 5p APZ measuring field

In stock

SKU: 934239

Price on request

€718.45

€0

Overview

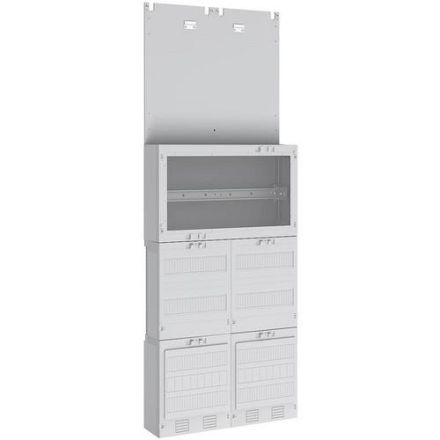

Measuring field consisting of: Holder for meter exchange plate 450mm wide and 520mm high, 1x additional transformer compartment 300mm 24 TE with transparent cover and height-adjustable device support rail, 2x reserve connection compartment 300mm, 1x NAR with 40mm busbar 2x12x5mm, 1x APZ compartment 300mm with RJ45 interface

Property	Value
Height:	1350 mm
Width:	500 mm
Width in modular units:	24
Design:	1-storey
Connection compartment:	300 mm
Number of distribution rows:	2
With wiring:	no
With mounting plate:	yes
Lower connection compartment:	with 5-pole busbar
Design Cover:	closed with pre-stamping
Main switch rated current:	250 A
Color:	grey
RAL number:	9002
Protection class (IP):	IP20
