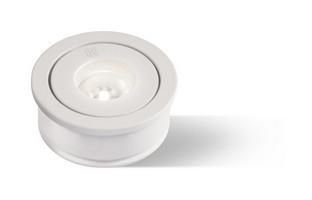

Barthelme 62514426 Modena 2.5W 700mA white 3,800K recessed spot

In stock
SKU: 394249
€16.27
Into a basketIn the basketGo

Overview

Dimmable, high-quality LED recessed ceiling spotlight, beam angle: 35°, equipped with high-quality LEDs from Osram, service life estimate L70 at Tc < 70°C: > 50,000h, including 1m connection cable with plug

PropertyValue
Max. System power:2.3 W
Rated luminous flux according to IEC 62722-2-1:260 lm
Housing color:white
Housing material:aluminum
Protection class (IP):IP20
Outer diameter:43.5 mm
Light source:LED not replaceable
Protection class:III
With light source:yes
Installation diameter:40 mm
Installation height/depth:26.5 mm
With control gear:no
Suitable for recessed mounting:yes
Height/depth:21 mm
With motion detector:no
Suitable for wall mounting:yes
Color temperature:4000 K
Beam angle:medium beam 21-40°
Color rendering index CRI:80-89
Suitable for Ceiling mounting:yes
Light distribution:symmetrical
Luminaire with limited surface temperature 'D-mark':no
Reflector:without
Luminous flux:260 lm
Cover material:transparent plastic
Covering of the luminaire with thermal insulation material possible:no
Voltage type:DC
Light color:white
Suitable for track mounting:no
Adjustability:pivotable
Suitable for clamp mounting:no
Suitable for pendulum suspension:no
Suitable for platform/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:no
Suitable for cable system:no
Surface:painted
Surface brushed:yes
LED nominal current at constant current:350 to 700 mA
Dimming depending on the operating device:yes
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in the device):no
Dimming GPRS:no
LineSwitch dimming:no
Manufacturer-specific dimming:no
Mains voltage modulation dimming:no
Trailing edge dimming:no
Phase control dimming:no
Phase control dimming:no
Programmable dimming:no
RF dimming:no
Sine Wave Reduction dimming:no
Touch and Dim dimming:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light distributor:Focus lens
Light emission:direct
Energy efficiency class of the built-in light source:A++, A+, A (LED)
Type of wiring:suitable for through-wiring
Number of poles:2
Connection type:other
Luminaire luminous efficacy:113 lm/W
Suitable for computer workstations according to EN 12464-1:no
Colour consistency (McAdam ellipse):SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)
HABModena 2.5W 700mA white 3.800K
ManufacturerBarthelme
HAN62514426
GTIN4021553004938
Covering the luminaire with thermal insulation material possibleNo
Connection typeOther
Type of wiringSuitable for through wiring
Beam angleMedium beam 21-40°
Outer diameter43.5 mm
Rated luminous flux according to IEC 62722-2-1260lm
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Installation diameter40 mm
Installation height/depth26.5 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth21 mm
LED nominal current at constant current350 to 700 mA
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy113lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux260lm
Light distributorFocus lens
Light distributionSymmetrical
Max. system performance2.3W
With operating deviceNo
With motion detectorNo
With light sourceYes
With light sensorNo
SurfacePainted
Brushed surfaceYes
Without dimming functionYes
Number of poles2
ReflectorWithout
IP protection)IP20
Protection classIII
Voltage typeDC
AdjustabilitySwiveling
Cover materialPlastic transparent
Housing materialAluminum
Barthelme 62514426 Modena 2.5W 700mA white 3,800K recessed spot
Barthelme 62514426 Modena 2.5W 700mA white 3,800K recessed spot
€16.27
Into a basketIn the basketGo
