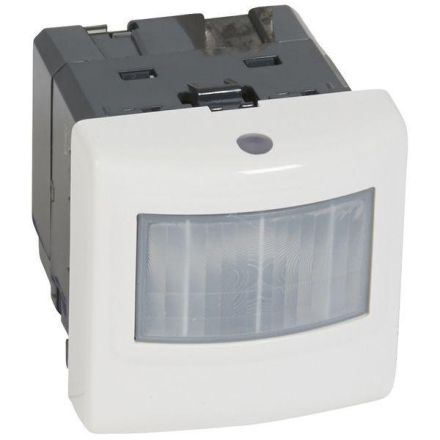

Bticino 574046 motion detector Myhome PIR, (white)

In stock

SKU: 438352

Price on request

€122.83

€0

Overview

Motion detector for the Mosaic switch range in white with passive infrared detection and brightness sensor. The settings are made using configurators or remote control, order no. BMSO4003 or BMSO4001. Detection range 180°, power supply BUS 27 V DC, 2 modules.

Property	Value
Motion height:	1.2 m
Motion type:	Flush-mounted
Design:	Motion detector
Constant light control:	yes
Adjustable response sensitivity:	yes
Horizontal detection angle:	0 to 180 °
Creep-by protection/rear field monitoring:	yes
Min. duty cycle:	30 s
Max. duty cycle:	256 min
Max. Range to one side:	3 m
Max. Frontal range:	8 m
Detection field diameter on floor:	6 m
HVAC control:	no
Response brightness adjustable:	yes
Networkable:	yes
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Suitable for protection class (IP):	IP41
Suitable for wireless transmission:	no
Color:	white
Staircase monitoring:	yes
Halogen-free:	yes
Animal corridor:	no
Material:	Plastic
Material quality:	Thermoplastic
RAL number (similar):	9003
Operating mode switch:	no
