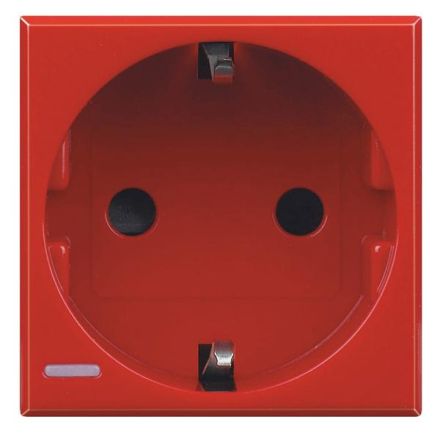

Bticino H4141R Schuko socket Red 16a

In stock

SKU: 248553

Price on request

€16.65

€0

Overview

Socket with screw terminals (SK), child protection, 16A/250V 2-module red

Property	Value
Version:	SCHUKO
Number of units:	1
Cover:	Central plate
Print/marking:	without print
Connection type:	Screw terminal
With hinged lid:	no
With increased contact protection:	yes
Text field/labeling area:	no
Color:	red
RAL number (similar) :	3003
Transparent:	no
Lockable:	no
Ejection mechanism:	no
With functional lighting:	no
Surge protection:	no
Residual current protection:	no
With fine fuse:	no
Special power supply:	without special power supply
Mounting type:	Flush-mounted
Fastening type:	Snap-on fastening EV010006
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	painted
Surface finish:	matt
Can be switched off:	no
Twisted central insert:	no
Rated current:	16 A
Rated voltage:	250 V
Frequency:	50 - 60 Hz
Phase tap:	without
Suitable for protection class (IP):	IP20
Device width:	45 mm
Device height:	45 mm
Device depth:	41.5 mm
