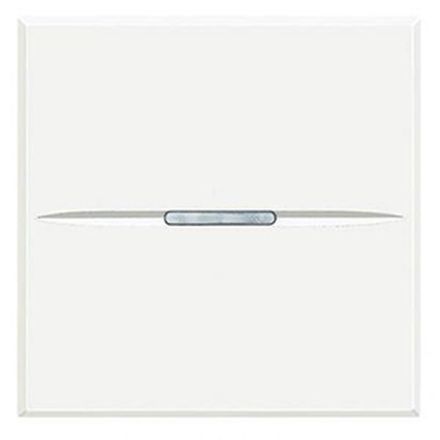

Bticino HD4005M2AN button AX circuit 10A 2M white, (white)

In stock
SKU: 249838
€11.57
Into a basketIn the basketGo

Overview

Normally open pushbutton with axial mechanism 10 A including rocker for the AXOLUTE switch range, screwless connection terminals, 2-module version, colour: white

PropertyValue
Color:white
Design:Single button
Suitable for protection class (IP):IP20
Operating method:Push button
Mounting type:Modular carrier
Number of rocker switches:1
Halogen-free:yes
Text field/labeling area:no
Composition:Modular device for installation switch programs
Feedback contact:no
With lighting:no
Mounting type:snap in
Material:plastic
Material quality:thermoplastic
Surface:untreated
Surface finish:glossy
RAL number (similar):9003
Nominal voltage:250 V
Number of modules (with modular design):2
Print:without
Rated current:10 A
Device width:45 mm
Device height:45 mm
Device depth:35.5 mm
Number of poles:1
Transparent:no
Antibacterial treatment:no
With signal lamp:no
Min. depth of device box:40 mm

Characteristics

Feedback contactNo
Number of actuating rockers1
With lightingNo
ManufacturerBticino
HANHD4005M2AN
GTIN8005543585931
Antibacterial treatmentNo
Number of modules (for modular construction)2
ImprintWithout
VersionSingle button
Surface finishGlittering
Operating modePush button
Mounting typeSnap into place
Rated current10A
ColorWhite
Suitable for protection class (IP)IP20
Device width45 mm
Device height45 mm
Device depth35.5 mm
Halogen freeYes
Min. depth of the device box40 mm
With signal lampNo
Mounting typeModule carrier
Nominal voltage250V
SurfaceUntreated
Number of poles1
RAL number (similar)9003
Text field/label areaNo
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationModular device for installation switch programs
