Bticino N4055M2AN button LL circuit 10A 2M white, (white)

Bticino N4055M2AN button LL circuit 10A 2M white, (white)

In stock

SKU: 249943

Price on request

€8.13

€0

Into a basketIn the basketGo

Overview

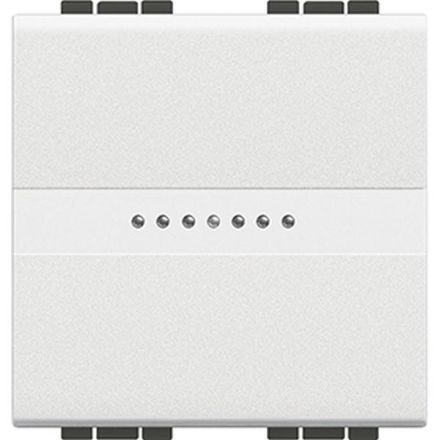

1-pole button with axial mechanism 10 A including rocker for the LIVINGLIGHT switch range, screwless connection terminals, 2-module version, colour: white

Property	Value
Color:	white
Design:	Single button
Suitable for protection class (IP):	IP20
Operating method:	Push button
Mounting type:	Modular carrier
Number of rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Modular device for installation switch programs
Feedback contact:	no
With lighting:	yes
Mounting type:	snap in
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Number of modules (with modular design):	2
Print:	without
Rated current:	10 A
Device width:	44 mm
Device height:	44 mm
Device depth:	36 mm
Number of poles:	1
Transparent:	no
Antibacterial treatment:	no
With signal lamp:	yes
Min. depth of device box:	40 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

With lightingYes

Manufacturer

HANN4055M2AN

GTIN8005543586297

Antibacterial treatmentNo

Number of modules (for modular construction)2

ImprintWithout

VersionSingle button

Surface finishGlittering

Operating modePush button

Mounting typeSnap into place

Rated current10A

Color

Suitable for protection class (IP)IP20

Device width44 mm

Device height44 mm

Device depth36 mm

Halogen freeYes

Min. depth of the device box40 mm

With signal lampYes

Mounting typeModule carrier

Nominal voltage250V

SurfaceUntreated

Number of poles1

RAL number (similar)9003

Text field/label areaNo

TransparentNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs
