Bticino N4140/16 Light Sdo 16a 230v Sloping

In stock

SKU: 248612

Price on request

€18.50

€0

Overview

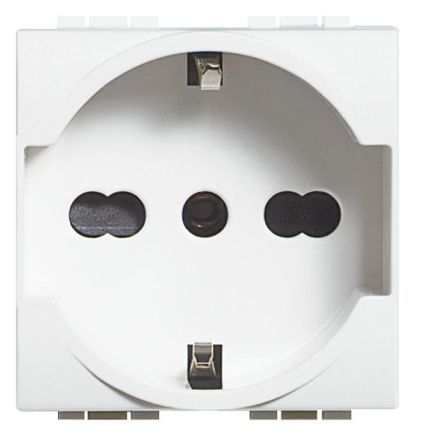

Socket with child protection 2P+E, 10/16A, 250Va.c., pin spacing 19 mm and 26 mm, suitable for Schuko and Italian plugs, 2-module, available on request, color: white

Property	Value
Version:	SCHUKO
Number of units:	1
Cover:	Central plate
Print/marking:	without print
Connection type:	Screw terminal
With hinged lid:	no
With increased contact protection:	yes
Text field/labeling area:	no
Color:	white
RAL number (similar) :	9016
Transparent:	no
Lockable:	no
Ejection mechanism:	no
With functional lighting:	no
Surge protection:	no
Residual current protection:	no
With fine fuse:	no
Special power supply:	without special power supply
Mounting type:	Flush-mounted
Fastening type:	Snap-on fastening EV010006
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
Can be switched off:	no
Twisted central insert:	no
Rated current:	6 A
Rated voltage:	250 V
Frequency:	50 - Hz
Phase tap:	without
Suitable for protection class (IP):	IP2X
For difficult conditions' (according to VDE) ':	no
Device width:	44 mm
Device height:	44 mm
Device depth:	41.5 mm
