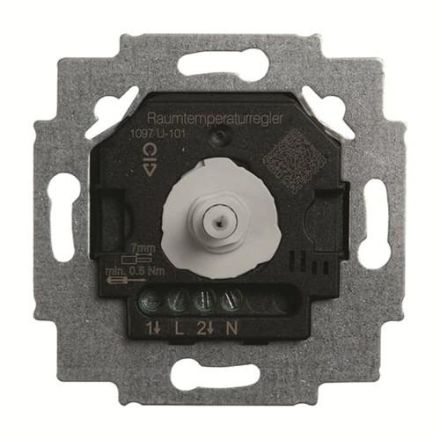

Busch-Jaeger 2CKA001032A0527 1097 U-101 Room temperature controller insert

In stock
SKU: 921911
€65.93
Into a basketIn the basketGo

Overview

Electronic room temperature controller insert with changeover contact The changeover contact is non-potential-bound The switching contact changes when the set temperature is reached The nominal current for the break contact is 10A The nominal current for the make contact is 5A Without spreader fastening The temperature controller is class 1 Power loss (standby) <0.15W To connect to hot water heating systems, control valves “normally closed” are required for the controller. When connecting the break contact, a control valve that is normally open is required. When commissioning the temperature controller, it should be noted that the switching point accuracy is only achieved after approx. 1-2 hours of operation after installation.

PropertyValue
Mounting type:Flush-mounted
Height:46 mm
Width:71 mm
Depth:71 mm
Thermal feedback:without

Characteristics

HAB1097 U-101
ManufacturerBUSCH-JAEGER
HAN2CKA001032A0527
GTIN4011395322796
Width71 mm
Height46 mm
Mounting typeFlush-mounted
Depth71 mm
Busch-Jaeger 2CKA001032A0527 1097 U-101 Room temperature controller insert
Busch-Jaeger 2CKA001032A0527 1097 U-101 Room temperature controller insert
€65.93
Into a basketIn the basketGo
