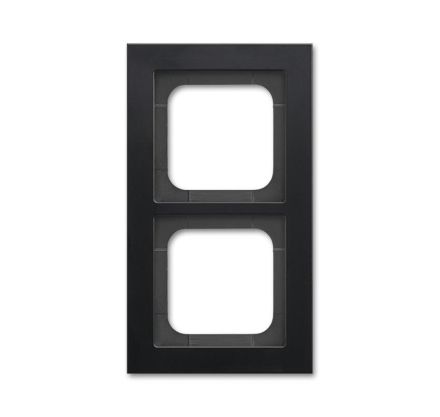

Busch-Jaeger 2CKA001754A4704 1722-275 2-way cover frame

Busch-Jaeger 2CKA001754A4704 1722-275 2-way cover frame

In stock

SKU: 428551

Price on request

€19.02

€0

Into a basketIn the basketGo

Overview

Cover frame, matt black, Busch-axcent, cover frame 2-way frame for vertical or horizontal installation. Protection class device: IP 20

Property	Value
Height:	162 mm
Width:	91 mm
Material:	metal
Mounting direction:	horizontal and vertical
Number of units:	2
Color:	black
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	11 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	aluminium
Surface:	anodized
Surface finish:	matt
Number of units horizontal:	2
Number of units vertical:	2
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	2
With mounting frame:	no
Impact resistance:	IK03

Characteristics

HAB1722-275 2-way

Manufacturer

HAN2CKA001754A4704

GTIN4011395259122

Number of Units2

Number of units horizontal2

Number of units vertical2

Number of switch inserts2

Surface finishFrosted

Mounting typeClamp fastening

Width91 mm

Diameter bore (opening)71 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height162 mm

With hinged lidNo

With mounting frameNo

Mounting directionHorizontal and vertical

SurfaceAnodized

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth11 mm

TransparentNo

MaterialMetal

Material qualityAluminum
