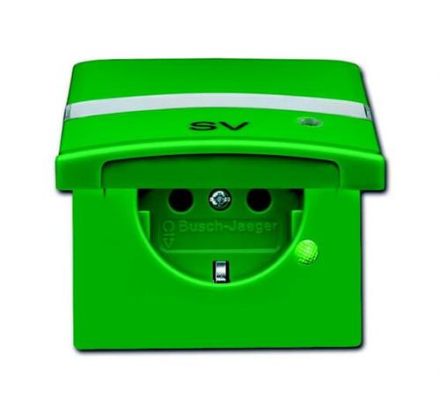

Busch-Jaeger 2CKA002064A0312 20 EUGKBLN-13-102 socket insert

Busch-Jaeger 2CKA002064A0312 20 EUGKBLN-13-102 socket insert

In stock

SKU: 428393

Price on request

€27.92

€0

Overview

SCHUKO socket insert, green RAL 6032, flush-mounted, water-protected, special plug devices, sockets, SCHUKO socket insert with hinged lid, labelling field and LED control light. Labelling field 66.7 x 10 mm. Continuous colour marking (hinged lid and base). With print. With increased contact protection. Supplied with sealing ring. IP 44 only in conjunction with Allwetter 44 frame. With plug connection. 2-pole (2 P + E) Nominal current: 16 A Device protection class: IP 44

Property	Value
RAL number (similar):	6032
Number of units:	1
Color:	green
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	yes
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	Safety supply (green)
Twisted central insert:	no
Print/marking:	SV
Connection type:	Plug-in terminal
With Fine-wire fuse:	no
Mounting type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface:	untreated
Surface finish:	glossy
Device width:	12 mm
Device height:	32 mm
Device depth:	71 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
Number of active contacts (round):	2
With signal lamp:	yes
Antibacterial treatment:	no
Min. Depth of the device box:	40 mm

Characteristics

HAB20 EUGKBLN-13-102

Manufacturer

HAN2CKA002064A0312

GTIN4011395260357

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of active contacts (approx.)2

Printing/markingSV

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP44

Device width12 mm

Device height32 mm

Device depth71 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)6032

Protective contactYes

Protective conductor contact roundNo

Special power supplySafety supply (green)

Text field/label areaYes

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
