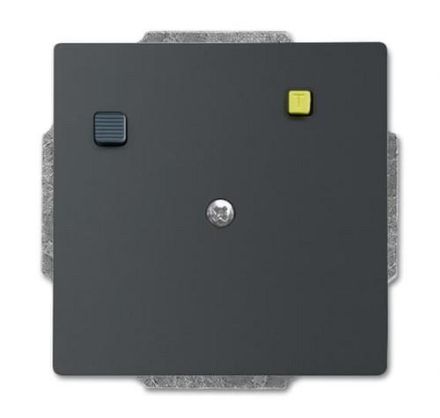

Busch-Jaeger 2CKA003117A0013 3151 UC-885 Buschmat-FI black matt flush-mounted insert

Busch-Jaeger 2CKA003117A0013 3151 UC-885 Buschmat-FI black matt flush-mounted insert

In stock

SKU: 845500

Price on request

€161.84

€0

Overview

Protection of downstream consumers. Rated residual current 30 mA. 2-pole disconnected (P, N) Without spread fastening. Mains frequency: 45...60 Hz. Protective measure according to 0100, can be verified or checked using the Profitest 0100S test device, for example.

Property	Value
Version:	other
RAL number (similar):	9005
Number of units:	1
Color:	black
Suitable for protection class (IP):	IP20
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With Hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	yes
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	matt
Rated residual current:	30 mA
Number of modules (with modular design):	1
Device width:	12 mm
Device height:	32 mm
Device depth:	71 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

HAB3151 UC-885 Buschmat-FI black matt

Manufacturer

HAN2CKA003117A0013

GTIN4011395229941

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)2

VersionOther

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current30mA

Color

Residual current protectionYes

Frequency50Hz

Suitable for protection class (IP)IP20

Device width12 mm

Device height32 mm

Device depth71 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage230V

Rated current16A

SurfacePainted

RAL number (similar)9005

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
