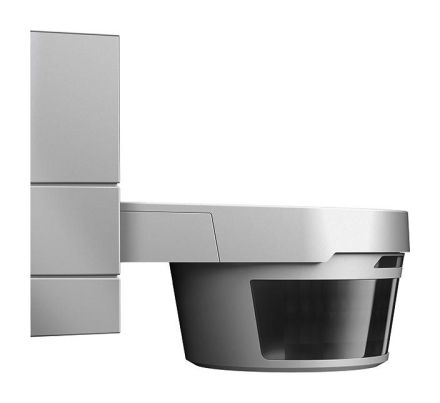

Busch-Wächter 220 MasterLINE KNX, silver metallic, Busch-Installationsbus KNX, presence detector, Busch-Wächter AP, Busch-Wächter 220 MasterLINE KNX With 2 motion channels. With 1 twilight channel with 3 switching thresholds. Not remotely controllable via IR handheld transmitter KNX. With integrated KNX bus coupler. No additional auxiliary voltage required. Monitoring density: 92 sectors with 368 switching segments. Twilight sensor: approx. 1-1000 lux Switch-off delay: approx. 10 sec. to 1092 min Sensor angle: 220° Range: 16 m Control elements: 2 adjustment potentiometers Connections: KNX line: bus connection terminal Detection range: front: 16 m, side: 16 m Opening angle: 220 ° Brightness limit: 1 lux - 1000 lux Installation height: 2.5 m Protection class (device): IP 55 Temperature range (device): -25 °C to 55 °C Dimensions (H x W x D): 115 mm x 125 mm x 141 mm
