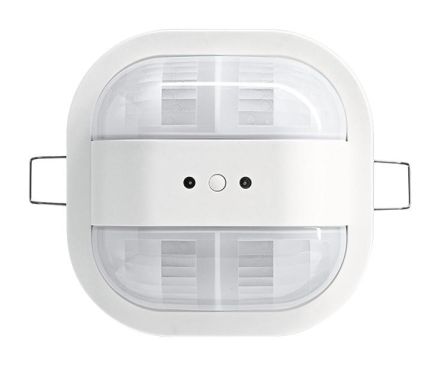

Busch-Presence detector Corridor Premium KNX, studio white matt, Busch-Installationsbus KNX, presence detector, Busch-Wächter AP, Busch-Presence detector Corridor Premium KNX 30 meter detection range: rectangular. With a mounting height of 3 m: facing the detector max. 20 mx 3 m (per side max. 10 mx 3 m). Across the detector max. 30 mx 3 m (per side max. 15 mx 3 m). With integrated KNX bus coupler. Installation height 27 mm. With 4 channels. For dimming/regulating the brightness to a defined value in a designated detection range. HVAC function for controlling heating and/or cooling systems as well as ventilation systems in the designated detection range. Detector application with 2-stage switch-off function. Detector application with integrated monitoring function. Constant light controller with up to 2 independent channels. Constant light controller with max. 2 outputs for brightness-dependent dimming/control of two light strips in the room. Integrated object room temperature controller. 10 freely programmable IR channels (blue and/or white) Incl. 5 logic channels (logic gate, gate, delay and staircase light). Evaluation via internal brightness sensor. Weighting of up to 2 external brightness values and the internal brightness sensor possible. The programming button can be activated with the IR hand-held transmitter 6010-25 (-500). Ceiling mounting on suspended ceilings with spring clips, on fixed ceilings in surface-mounted housing 6131/39-xxx (-500) or on flush-mounted boxes with intermediate ring for flush-mounted boxes 6131/38-xxx (-500). Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Does not fit into the British Standard and flush-mounted box. Recommendation: HaloX-O flush-mounted box from Kaiser (item no. 1290-40) with corresponding cover (1290-47 or 1290-85 for exposed concrete) or IBTronic H120-68 from Spelsberg (item no. 97600501). Connections: KNX line: bus connection terminal Brightness limit: 1 lux - 1000 lux Installation height: 2 m - 4 m Protection class device: IP 20 Temperature
