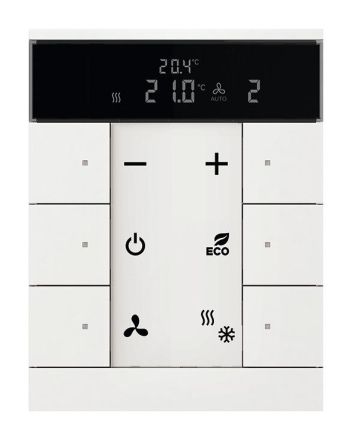

Busch-Jaeger 2CKA006330A0002 6330/65-500 auxiliary control function 6f. room temperature controller

In stock
SKU: 766858
€180.70
Into a basketIn the basketGo

Overview

Room temperature controller extension with 6-way operating function, studio white, Busch installation bus KNX, Busch-Sentio, Room temperature controller extension with 6-way operating function Freely configurable multifunctional control element. Room temperature controller extension with max. 6-way operating element With labeling field. Transparent labeling sheet with standard symbols included in delivery. Support of KNX functions through innovative color concept (yellow = lighting, blue = blinds, orange = RTR, magenta = scene and white = neutral / no function assignment) or standard lighting red / green. Button function (switching / dimming / blinds / sending value / light scenes / ventilation function) With integrated temperature sensor. With temperature display ACTUAL value With temperature display TARGET value. The bus connection is made via the enclosed bus terminal. With integrated KNX bus coupler. Control elements: Push buttons left/right Display elements: Display of operating mode, temperature, fan coil level, humidity value, CO2 value, time or date via LCD Connections: KNX line: Bus connection terminal Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 116 mm x 90 mm x 13 mm

PropertyValue
Color:white
Mounting type:Flush-mounted
Composition:Control element
Material quality:Thermoplastic
Material:Plastic
Protection class (IP):IP20
Surface:untreated
Surface finish:glossy
RAL number (similar):9016
KNX bus system:yes
Bus system radio bus:no
Bus system Powernet:no
Bus system LON:no
With theft/dismantling protection:yes
With display:yes
With LED display:yes
With on-site operation:no
External sensors:no
Manual setpoint adjustment:yes
Presence button:yes
Parallel operation possible:yes
With bus connection:yes
Transparent:no
Bus system KNX radio:no
Bidirectional radio:no

Characteristics

With theft/dismantling protectionYes
HAB6330/65-500 auxiliary operating function 6f.
ManufacturerBUSCH-JAEGER
HAN2CKA006330A0002
GTIN4011395255087
Surface finishGlittering
Bus system radio busNo
KNX bus systemYes
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
ColorWhite
Radio bidirectionalNo
With bus connectionYes
With displayYes
With LED displayYes
Mounting typeFlush-mounted
SurfaceUntreated
RAL number (similar)9016
IP protection)IP20
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationControl element
