Busch-Jaeger 2CKA006800A2949 64761 UJ-914 BW 180 flex Set BASIC motion detector

Busch-Jaeger 2CKA006800A2949 64761 UJ-914 BW 180 flex Set BASIC motion detector

In stock

SKU: 776777

Price on request

€98.26

€0

Overview

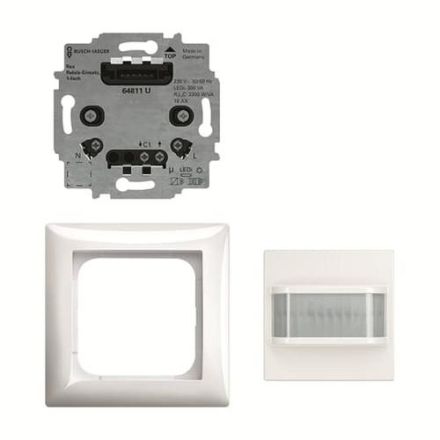

Ready-to-install motion detector for flush mounting (set packaging). Consisting of Busch-Wächter® 180 flex Basic Sensor, 64761-914. Consisting of relay insert flex, 1-way, 64811 U. Consisting of Busch-balance SI cover frame, 1-way 1721-914. The range information refers to an ambient temperature of 21 °C. Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, install or Busch-Jaeger item no. 3040 flush-mounted box masonry, 3050 flush-mounted box hollow wall or 3060 flush-mounted box concrete)

Property	Value
Depth:	48 mm
Width:	81 mm
Height:	81 mm
Design:	motion detector
Color:	white
Nominal voltage:	230 V
RAL number (similar):	9010
Material:	plastic
Mounting type:	flush-mounted
Response brightness:	5 to 500 lx
Protection class (IP):	IP20
Max. switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	yes
Min. duty cycle:	10 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-25 to 45 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. frontal range:	12 m
Max. Inrush current:	80 A
Sensor type:	passive infrared
Optimal mounting height:	1.1 m
Surface finish:	glossy
Surface:	untreated
Material quality:	thermoplastic
Number of switching zones:	1
Horizontal detection angle:	13 to 180 °
Frequency:	50 Hz
Halogen-free:	yes
Constant light control:	yes
HVAC control:	yes
Forced shutdown:	yes
Animal corridor:	yes
Networkable:	yes
Staircase monitoring:	yes
Bypass switch:	yes
Suitable for wireless transmission:	yes
Remote control:	yes
With signal unit:	yes
Alarm function:	yes
Teach function for response brightness:	yes
Dimming function with dimming insert:	yes
Transparent:	yes
With remote control:	yes
Suitable for C load:	yes
With DALI interface:	yes
Extension input:	yes
Forced switching on:	yes
Suitable for ceiling mounting:	yes
Connection type:	Screw terminal
Antibacterial treatment:	yes
Installation width:	25 mm
Installation depth:	25 mm
Installation diameter:	40 mm
Min. depth of device box:	25 mm

Characteristics

Bridging switchYes

With signal unitYes

Number of switching zones1

Response brightness5 to 500 lx

Forced shutdownYes

Max. inrush current80 A

Forced switching onYes

HAB64761 UJ-914 BW 180 flex Set BASIC

Manufacturer

HAN2CKA006800A2949

GTIN4011395295007

Dimming function with dimming insertYes

Alarm functionYes

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentYes

VersionMotion detector

Surface finishGlittering

Width81 mm

Installation width25 mm

Installation diameter40 mm

Installation depth25 mm

Detection angle horizontal13 to 180 °

Color

Remote controllableYes

Frequency50Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionYes

HVAC controlYes

Halogen freeYes

Height81 mm

Constant light controlYes

Max. duty cycle30 min

Max. range frontal12m

Max. range to one side12m

Max. switching capacity2300W

Min. duty cycle10s

Min. depth of the device box25 mm

With DALI interfaceYes

With remoteYes

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1.1m

RAL number (similar)9010

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 45 °C

Depth48 mm

Animal corridorYes

TransparentYes

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
