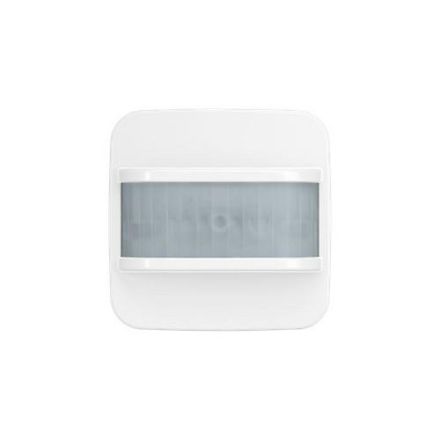

Motion detector sensor with ambient light measurement. For automatic switching of consumers depending on movement and brightness. Push button function possible at any time. For detection with animal paths. In combination with flex dimmer insert: dimming function of the lighting and optional light value storage. With activatable switch-off warning for staircase operation. Compatible with all flex inserts. Adjustment elements on the back. Extension of the detection area through master/slave combination. Additional on/off option via button input on the flush-mounted insert. With continuous light/continuous off function. With detection display in test mode. Monitoring density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 s - 30 min or short-term pulse 1 s adjustable. For relay insert flex, 1-way, 64811 U. For e-contact insert flex, 1-way, 64814 U. For relay insert flex, 2-way, 64821 U. For LED touch dimmer insert flex, 1-way, 64851 U. For extension insert flex, 64891 U. Installation height: 22 mm. Please order the corresponding flush-mounted insert separately. The range information refers to an ambient temperature of 21 °C.
| Property | Value |
| Mounting height: | 1.1 m |
| Mounting type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | no |
| Creep-by protection/rear field monitoring: | no |
| Min. duty cycle: | 10 s |
| Max. duty cycle: | 30 min |
| Max. range to one side: | 12 m |
| Max. Frontal range: | 12 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Networkable: | yes |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Suitable for wireless transmission: | no |
| Color: | white |
| Staircase monitoring: | no |
| Halogen-free: | yes |
| Animal corridor: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| RAL number (similar): | 9010 |
| Self-learning switch-off delay: | no |
| Operating mode switch: | yes |
