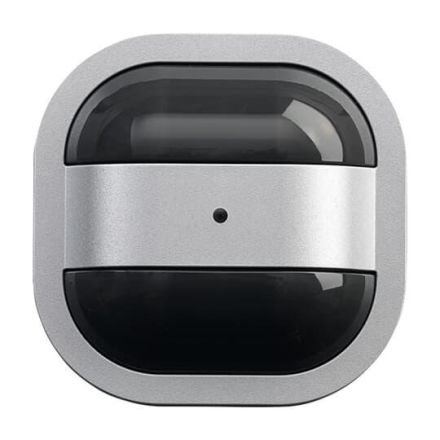

Busch-Jaeger 2CKA006800A3028 64753-183 PM flex Universal Sensor 12Mtr Motion Detector

Presence detector sensor with mixed light measurement. For switching lights depending on brightness and movement. Detection range (at 3 m installation height): circular, seated people: up to Ø 10 m, walking people: up to Ø 12 m. For constant light control in combination with LED dimmer insert flex, 64851 U. For heating/air conditioning/ventilation control in combination with relay insert flex, 2-way, 64821 U. Compatible with all flex inserts. Can be remotely controlled via IR service handheld transmitter 6843. Setting elements accessible from the front. Extension of the detection range using main unit/extension unit combinations. Additional on/off option via button input. For semi- and fully automatic operation. With permanent light/permanent off function (8 hours), IR service handheld transmitter required. With teach-in function of the brightness switching threshold, IR service handheld transmitter required. With brightness-independent test mode for evaluating the detection area. With detection display in test mode. Monitoring density: 72 sectors with 640 switching segments. Switch-off delay: 1 min to 30 min or short-term pulse 1 s adjustable. For relay insert flex, 1-way, 64811 U. For relay insert flex, 2-way, 64821 U. For e-contact insert flex, 1-way, 64814 U. For LED touch dimmer insert flex, 64851 U. For extension insert flex, 64891 U. Installation height: 35 mm. Please order the corresponding flush-mounted insert separately. The range information refers to an ambient temperature of 21 °C.
