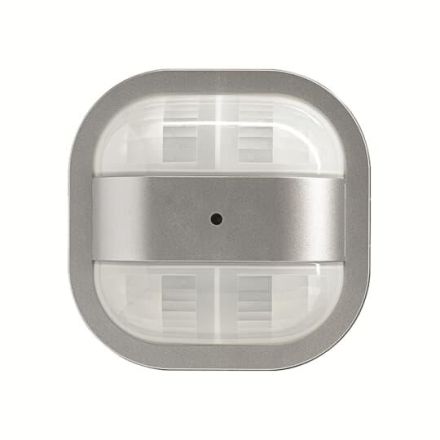

Busch-Jaeger 2CKA006800A3036 64755-183 PM flex Corridor Sensor 24Mtr motion detector

Presence detector sensor with mixed light measurement. For brightness and movement-dependent switching of lighting. Detection range (at 3 m installation height): rectangular, walking people: across the detector 24 mx 3 m, frontal/lengthways to the detector 14 mx 3 m. For constant light control in combination with LED dimmer insert flex, 64851 U. For heating/air conditioning/ventilation control in combination with relay insert flex, 2-way, 64821 U. Compatible with all flex inserts. Can be remotely controlled via IR service handheld transmitter 6843. Setting elements accessible from the front. Extension of the detection range through main unit/extension unit combinations. Additional on/off option via button input. For semi- and fully automatic operation. With permanent light/permanent off function (8 hours), IR service handheld transmitter required. With teach-in function for the brightness switching threshold, IR service handheld transmitter required. With brightness-independent test mode for evaluating the detection range. With detection display in test mode. Monitoring density: 72 sectors with 640 switching segments. Switch-off delay: 1 min to 30 min or short-term pulse 1 s adjustable. For relay insert flex, 1-way, 64811 U. For relay insert flex, 2-way, 64821 U. For e-contact insert flex, 1-way, 64814 U. For LED touch dimmer insert flex, 64851 U. For extension insert flex, 64891 U. Installation height: 39 mm. Please order the corresponding flush-mounted insert separately. The range information refers to an ambient temperature of 21 °C.
